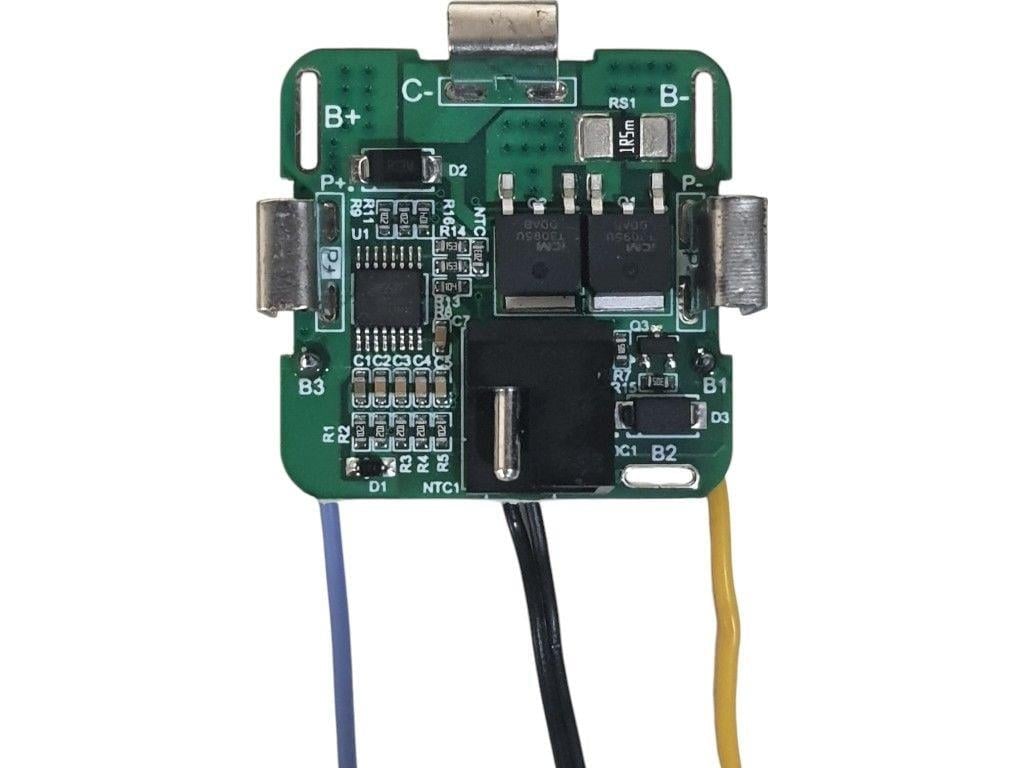

4S 20A Lityum Matkap BMS Kare Tip (NTC'li)(18650)

4S 20A Lityum Matkap BMS Kare Tip (NTC'li)(18650) (M02.1076)

Marka : OLT

Fiyat : ₺119,64(KDV Dahil)

Stok Miktarı : 305

₺119,64 `den başlayan taksitlerle

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Adet

Artır Azalt

Tavsiye Et

18650 tipteki 2x2 dizilmiş pil grubuna uygun ölçüdedir.
21700 pil grubuna uymaz.

Charge Voltage:16,8V
Single Cell Charge Voltage:3.8/4.25V
Continuous Discharge Current:8-20A
Overcharge Single Cell Detection Voltage:3.85-4.25V
Overcharge Protection Delay:1sn
Overcharge Single Cell Recovery Voltage:3.75-4.13V
Overcharge Protection Release Delay:1mS
Over-discharge Single Cell Detection Voltage:2-2.8V
Over-discharge Protection Delay:1sn
Over-discharge Single Cell Recovery Voltage:2.5-3.0V
Over-discharge Protection Release Delay:100±20mS
Over-current Detection Voltage:0.1-0.4V
Over-current Detection Current:30±5A
Over-current Detection Delay:1S
Short Circuit Protection Support:Yes
Short Circuit Detection Delay:250uS
Short Circuit Release Delay:1S
Short Circuit Detection Voltage:0.8V
Recovery State:Auto after Disconnect Load
Over Temperature ProtectionProtection Temperature:70±5°
Recovery Temperature:55±5°
Working State:25uA (25°)
Stand-by State:6uA(25°)
Discharge Main Circuit Internal Resistance:30±5mΩ
Operating Temperature: -40°-85° RH≤75%
Store Temperature: -40°-125° RH≤75%
SizeLength x Width: 34x34x1,6 mm
Package Contents:
1 Pc x Battery Charger Protection Board
